Name: Justiermodul 2.0 – 12mm
Price: 120 EUR
Availability: InStock
Author: Christine Veit

Home » Products » VARO » Adjustment Module 2.0 – 12 mm

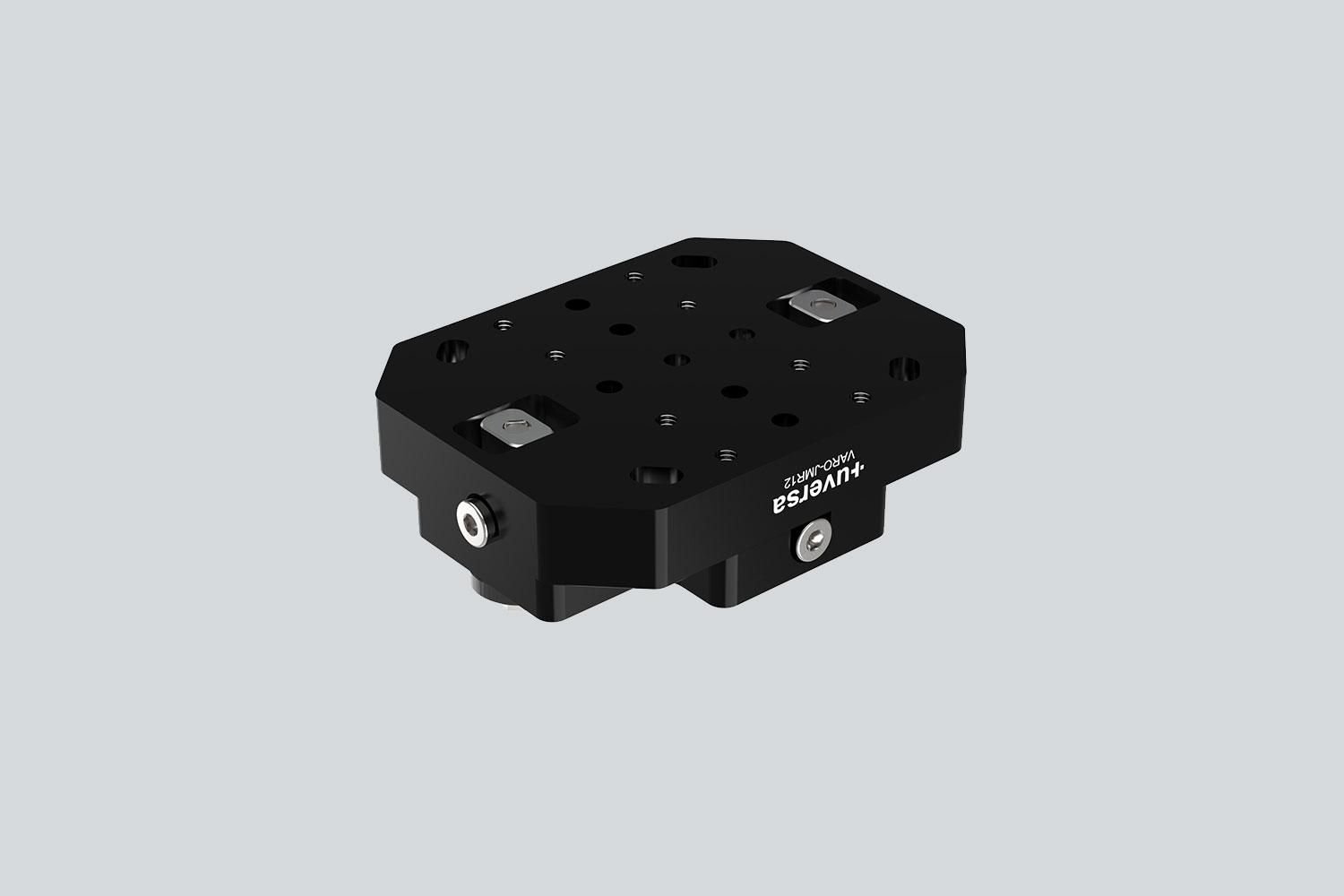

VARO-JMR12 Justiermodul 2.0 aus eloxiertem Aluminium, modulare Befestigung, schwarz eloxiert

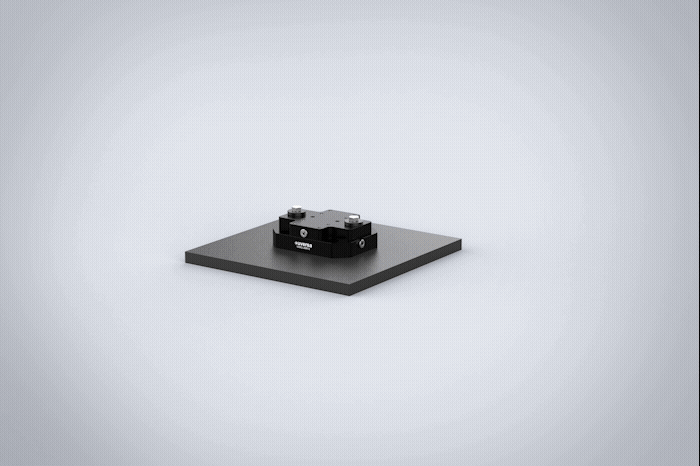

Anwendungsmöglichkeit VARO-JMR12, schwarz eloxiert

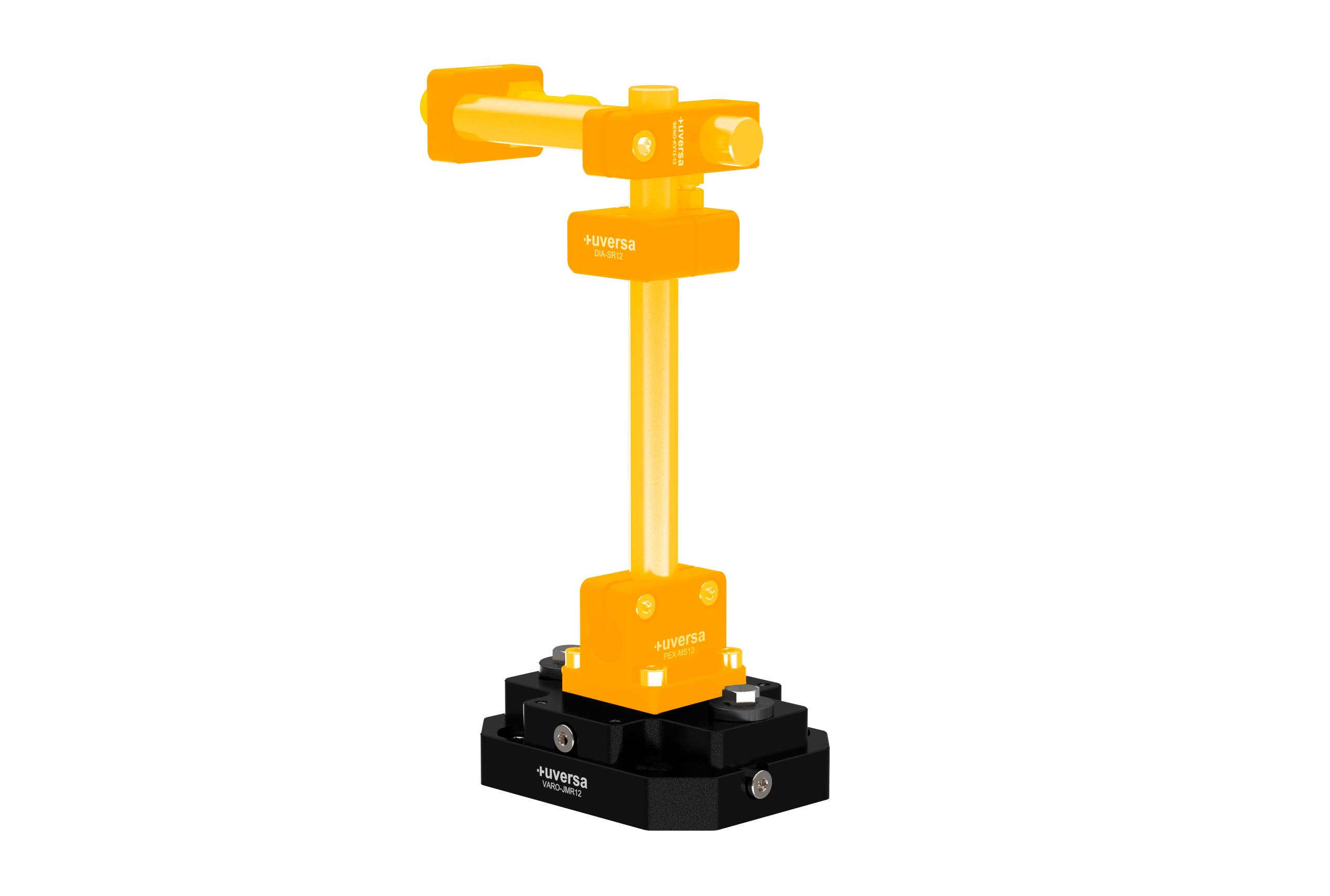

Example Image: Colors can vary.

Examples in video form can be found on our Youtube channel

VARO

Adjustment Module 2.0 – 12 mm

120,00 € – 146,50 €

plus 19% VAT

The VARO-JMR12 is the optimized successor to the well-established alignment module VARO-JM12. Featuring an extended adjustment range of ±7.5 mm in the X direction and ±4.5 mm in the Y direction, as well as a rotational fine adjustment of ±2.5°, it provides maximum flexibility for precise alignment of assemblies.

Data sheet (PDF) for VARO-JMR12 STP Model (zip) for VARO-JMR12

Color

Clear options

Article number: VARO-JMR12

Category: VARO

Keywords: 12mm, Alignment module, Alignment unit

Brand: uversa

Description

The VARO-JMR12 Adjustment Module 2.0 for mechanical engineering is the next stage of development of the proven VARO-JM12 adjustment module and is specifically designed for applications in mechanical engineering. It enables precise adjustment in the XY plane and reliably compensates for manufacturing tolerances. With an extended adjustment range of ±7.5 mm in the X direction and ±4.5 mm in the Y direction, it provides additional flexibility for precise positioning.

A special feature of the VARO-JMR12 is the slotted mounting holes, which allow not only linear adjustment but also rotational fine adjustment of ±2.5°. This makes the module suitable both for fixed work surfaces and for integration into complex assemblies.

Made of anodized aluminum, it is available in several colors and can also be supplied with an ESD coating upon request.

As part of the uversa modular system, the adjustment module can be combined with mono and duo bases and flexibly connected with additional modules. This provides designers with an extended range of options for the modular construction of machinery and plant systems.

Compatible modules include PEX-MS12, PEX-DS12, EVO-KM12 and EVO-DM12, which can be mounted directly.

Additional Information

Eigenschaften	Wert
Color	Schwarz eloxiert (Standard), Blau eloxiert, Rot eloxiert, Grün eloxiert, Gold eloxiert, SurTec® 650 (ESD-leitfähig, passiviert)
HS code	90330090

Eigenschaften	Wert
Country of origin	Germany
Material	Aluminum (milled)

FAQ

1. What is the VARO-JMR used for?

The VARO-JMR Adjustment Module is designed for the precise adjustment of components in the X/Y plane. It enables targeted compensation of manufacturing tolerances and precise component positioning, significantly simplifying the mechanical design.

2. How does the VARO-JMR differ from the VARO-JM?

The VARO-JMR is the next generation of adjustment modules for mechanical engineering and the consistent evolution of the VARO-JM. It features an extended adjustment range and additional slotted mounting holes that enable both linear and rotational fine adjustment. This allows components to be aligned with greater precision and integrated more flexibly into demanding machine designs.

3. How is the adjustment performed?

Adjustment is performed using side-mounted adjustment screws, allowing the position to be fine-tuned with high precision. Combined with the rotational adjustment capability, this provides a wide adjustment range, offering significant advantages for complex assemblies.

4. How is the VARO-JMR mounted?

The Adjustment Module can be mounted on fixed work surfaces or integrated directly into assemblies. Thanks to its well-designed construction, it is suitable for a wide range of installation positions and adapts flexibly to different design requirements.

5. What variants of the VARO-JMR are available?

The module is made of anodized aluminum and is available in a range of colors. On request, the VARO-JMR is also available as ESD-conductive, passivated, making it suitable for use in ESD-sensitive environments.

6. Which modules is the VARO-JMR compatible with?

As part of the uversa modular system, the VARO-JMR can be seamlessly combined with PEX Mono and Duo Column Bases. It can also be connected directly to modules such as the EVO-KM and EVO-DM, allowing easy integration into existing machine structures.

7. Which applications is the VARO-JMR best suited for?

The VARO-JMR is primarily used in mechanical engineering, fixture construction, and testing and assembly systems. Wherever precise alignment, flexible readjustment, and a modular design are required, it provides a reliable and efficient solution.
