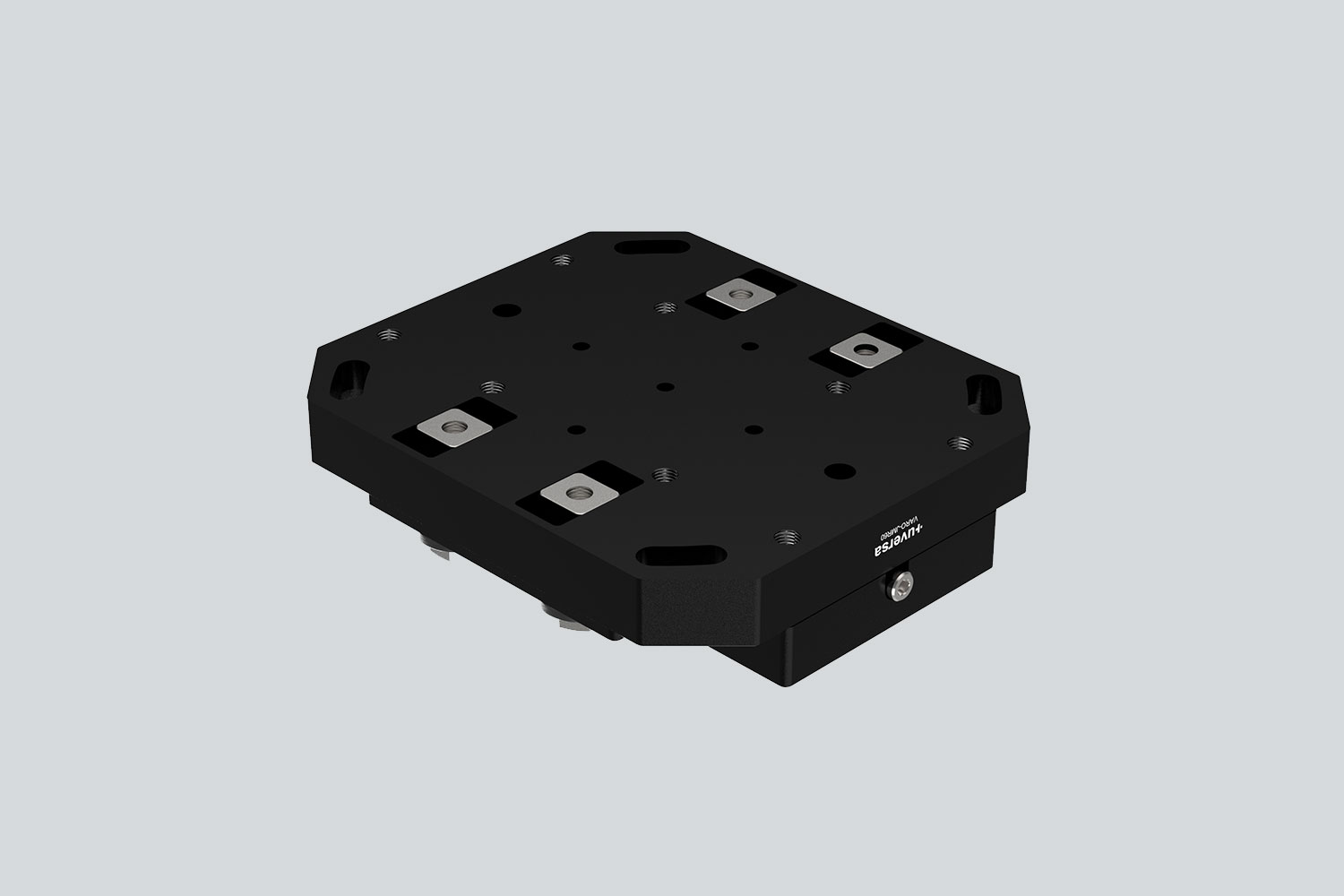

VARO-JMR60 Justiermodul 2.0 aus eloxiertem Aluminium, modulare Befestigung, schwarz eloxiert

Anwendungsmöglichkeiten VARO-JMR, schwarz eloxiert

Example Image: Colors can vary.

Examples in video form can be found on our Youtube channel

VARO

Adjustment Module 2.0 – 60 mm

354,90 € – 403,30 €

plus 19% VAT

The VARO-JMR60 is the optimized successor to the well-established alignment module VARO-JM60. Featuring an extended adjustment range of ±16 mm in the X direction and ±10 mm in the Y direction, as well as a rotational fine adjustment of ±4.5°, it provides maximum flexibility for precise alignment of assemblies.

Data sheet (PDF) for VARO-JMR60 STP Model (zip) for VARO-JMR60

Color

Clear options

Article number: VARO-JMR60

Category: VARO

Keywords: 60mm, Alignment module, Alignment unit

Brand: uversa

Description

The VARO-JMR60 Adjustment Module 2.0 is the optimized version of the proven VARO-JM60. It is designed for modern mechanical engineering and ensures maximum precision in the alignment of assemblies.

The adjustment range is ±16 mm in the X direction and ±10 mm in the Y direction. This allows assemblies to be precisely adjusted and manufacturing tolerances to be reliably compensated. The rotational fine adjustment of ±4.5° provides additional flexibility for precise positioning, even in complex constructions.

Made of aluminum, the VARO-JMR60 impresses with stability and durability. Several colors are available. Optionally, the module is also available with an ESD coating – perfect for sensitive production environments.

Within the uversa modular system, the VARO-JMR60 can be flexibly combined with mono and duo bases or expanded with additional modules. Designers and engineers benefit from a wide range of options for the modular development of precise machinery and plant engineering concepts.

Compatible modules include PEX-MS60, PEX-DS60, EVO-KM60, EVO-MM60 and EVO-DM60, which can be mounted directly.

Additional Information

Eigenschaften	Wert
Color	Schwarz eloxiert (Standard), Blau eloxiert, Rot eloxiert, Grün eloxiert, Gold eloxiert, SurTec® 650 (ESD-leitfähig, passiviert)
HS code	90330090

Eigenschaften	Wert
Country of origin	Germany
Material	Aluminum (milled)

FAQ

1. What is the VARO-JMR used for?

The VARO-JMR Adjustment Module is designed for the precise adjustment of components in the X/Y plane. It enables targeted compensation of manufacturing tolerances and precise component positioning, significantly simplifying the mechanical design.

2. How does the VARO-JMR differ from the VARO-JM?

The VARO-JMR is the next generation of adjustment modules for mechanical engineering and the consistent evolution of the VARO-JM. It features an extended adjustment range and additional slotted mounting holes that enable both linear and rotational fine adjustment. This allows components to be aligned with greater precision and integrated more flexibly into demanding machine designs.

3. How is the adjustment performed?

Adjustment is performed using side-mounted adjustment screws, allowing the position to be fine-tuned with high precision. Combined with the rotational adjustment capability, this provides a wide adjustment range, offering significant advantages for complex assemblies.

4. How is the VARO-JMR mounted?

The Adjustment Module can be mounted on fixed work surfaces or integrated directly into assemblies. Thanks to its well-designed construction, it is suitable for a wide range of installation positions and adapts flexibly to different design requirements.

5. What variants of the VARO-JMR are available?

The module is made of anodized aluminum and is available in a range of colors. On request, the VARO-JMR is also available as ESD-conductive, passivated, making it suitable for use in ESD-sensitive environments.

6. Which modules is the VARO-JMR compatible with?

As part of the uversa modular system, the VARO-JMR can be seamlessly combined with PEX Mono and Duo Column Bases. It can also be connected directly to modules such as the EVO-KM and EVO-DM, allowing easy integration into existing machine structures.

7. Which applications is the VARO-JMR best suited for?

The VARO-JMR is primarily used in mechanical engineering, fixture construction, and testing and assembly systems. Wherever precise alignment, flexible readjustment, and a modular design are required, it provides a reliable and efficient solution.
